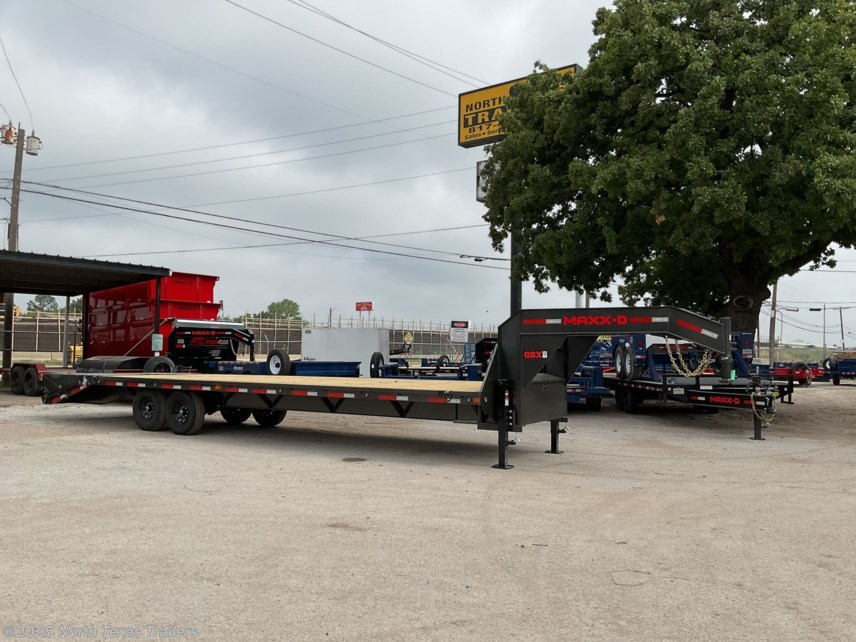

New 2026 MAXX-D GSX10230

The GSX is our most popular flatbed gooseneck. It starts at 15,400 lb GVWR with 2-7K electric brake axles and can be upgraded to 21,000 lb GVWR with the right axles and frame options. It is also available with a pintle hook front end instead of the gooseneck. The most popular setup is a 20ft deck with a 5ft dovetail which would be our 25ft model. This trailer is most often used in farming applications to haul things such as smaller tractors or hay as well as Hot Shot work.
This Unit Located at: 3901 E Loop 820 S., Ft Worth TX 76119. James - 817-496-3800
Features:

• 102in Wide X 30ft Long
• 25ft Flat Floor with 5ft Dovetail and Maxx-D Out Wedge Ramps
• 15,000 lb GVWR
• Tandem 7000 lb. Electric Brake Axles
• ST235/80R16 E Rated Radial Tires with Matching Spare
• 2 5/16 30k Adjustable Gooseneck Coupler
• 2) 10k Drop-leg Spring Loaded Jacks
• Full Width Toolbox in Neck
• 12in 14lb I-beam Frame with Torque Tube
• 3in Channel Crossmembers on 16in Centers
• Slipper Spring Suspension
• 2x8 Treated Wood Floor
• Flushmount LED Lighting
• Premium 6-Step Baked-on Powder Coat Paint
• Industry Leading 5 Year Warranty
